16-Bit, 4 Channels, Voltage-Output Digital-to-Analog Converter.
SGM5352-16
No.14056
FEATURES
? Power Supply Range: 2.7V to 5.5V
? 16-Bit DAC, Monotonicity Guaranteed by Design
? 6LSB (TYP) Relative Accuracy
? Low Power Operation: 0.4mA at 2.7V
? Power-On Reset to Zero-Scale
? 10μs (TYP) Settling Time
? -100dB (TYP) AC Crosstalk
? Simultaneous or Sequential Output Update and
Power-Down
? 1.8V to 5.5V Logic Interface
? Available in Green WLCSP-1.64×1.62-16B and
TSSOP-16 Packages
DESCRIPTION
The SGM5352-16 is a low power, 4 channels, 16-bit, voltage-output DAC. It operates from a 2.7V to 5.5V supply and the monotonicity is guaranteed by design.
The SGM5352-16 sets the output range of each DAC channel by using an external reference voltage. It incorporates a power-on reset circuit that ensures the DAC output powers to 0V.
The SGM5352-16 uses a 3-wire serial SPI interface.
The SGM5352-16 is available in Green TSSOP-16 and WLCSP-1.64×1.62-16B packages. It operates over an ambient temperature range of -40℃ to +125℃.
APPLICATION CIRCUIT

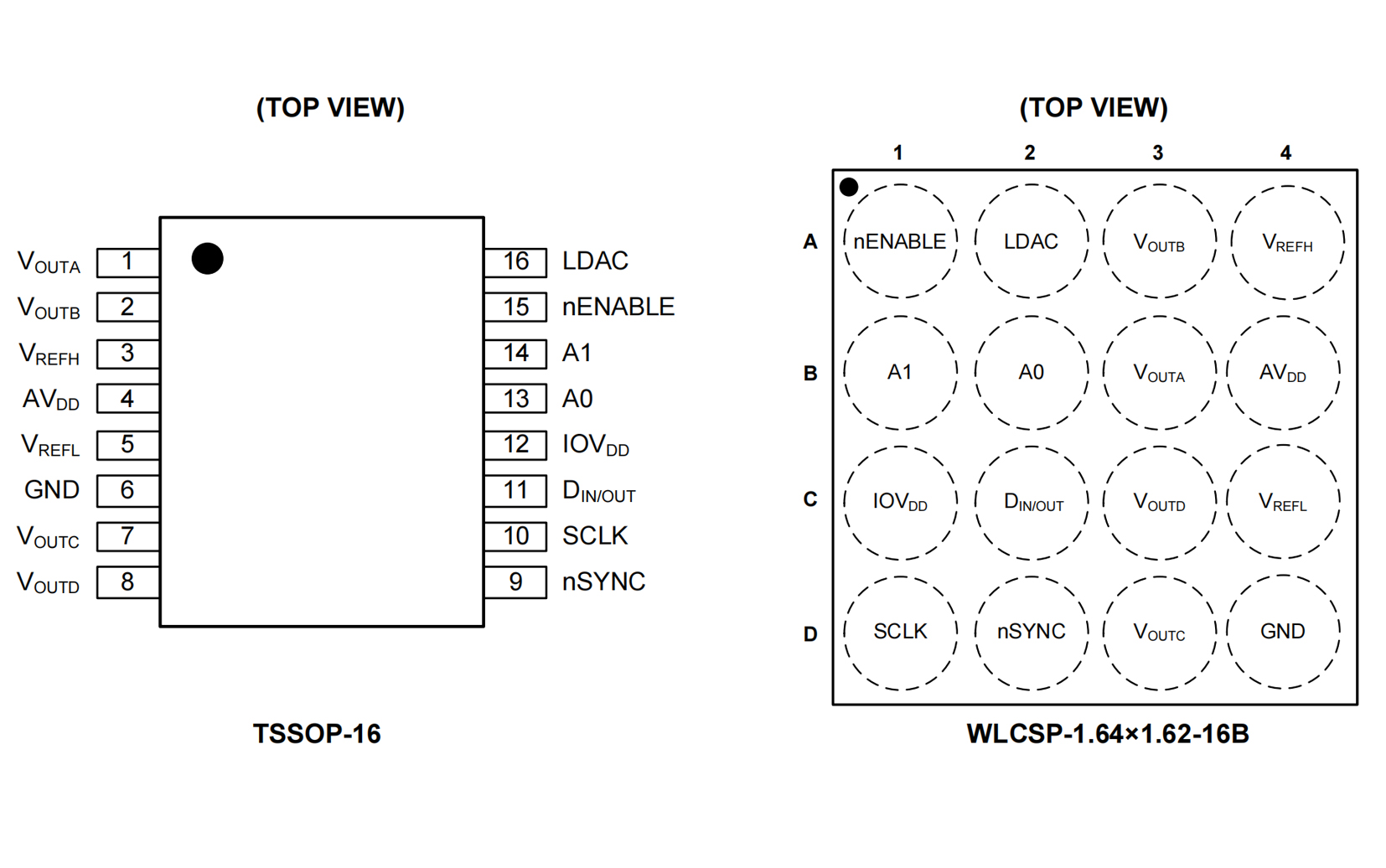

PIN CONFIGUTION
