LM2902.pdf
No.10666
? Wide Supply Ranges Dual Supplies: ±1.5V to ±16V
? Low Quiescent Current: 860μA (TYP)
? Gain-Bandwidth Product: 1.1MHz
? Input Common Mode Voltage Range Includes Ground,
Allowing Direct Sensing Near Ground
? Low Input Offset Voltage: 5.8mV (MAX)
? Low Input Offset Current: 20pA (TYP)
? Low Input Bias Current: 10pA (TYP)
? Differential Input Voltage Range Equal to Maximum- Rated Supply Voltage: 32V
? Open-Loop Differential Voltage Gain: 111dB (TYP)
? Internal Frequency Compensation
? -40℃ to +125℃ Operating Temperature Range

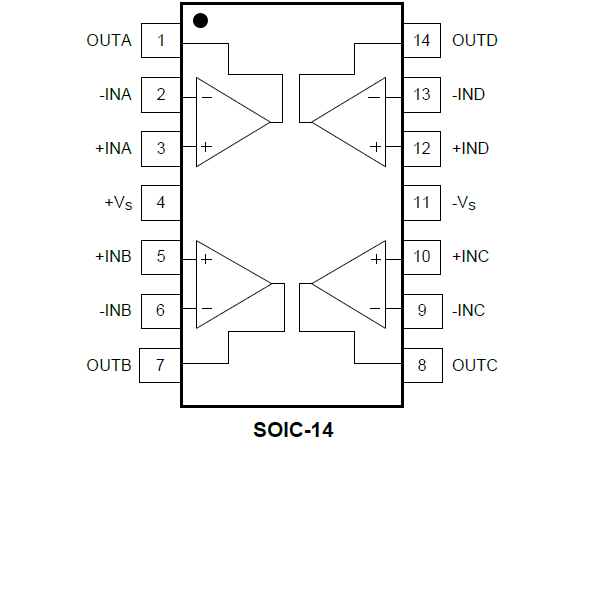

? Available in a Green SOIC-14 Package
The LM2902 consists of four independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or dual supplies over a wide range of voltages.
The LM2902 is available in a Green SOIC-14 package. It is specified over the -40℃ to +125℃ temperature range.
