SGM8749.pdf
No.10674
? Fast, 150ns Propagation Delay (10mV Overdrive)
? Low Power Consumption: 22μA (TYP) at VS = 3V
? Wide Supply Voltage Range: 2.7V to 5.5V
? Optimized for 3V and 5V Applications
? Open Drain Output
? Rail-to-Rail Input Voltage Range
? Low Offset Voltage: 0.8mV (TYP)
? Output Swing 185mV with 4mA Output Current
? CMOS/TTL-Compatible Output
? -40℃ to +85℃ Operating Temperature Range

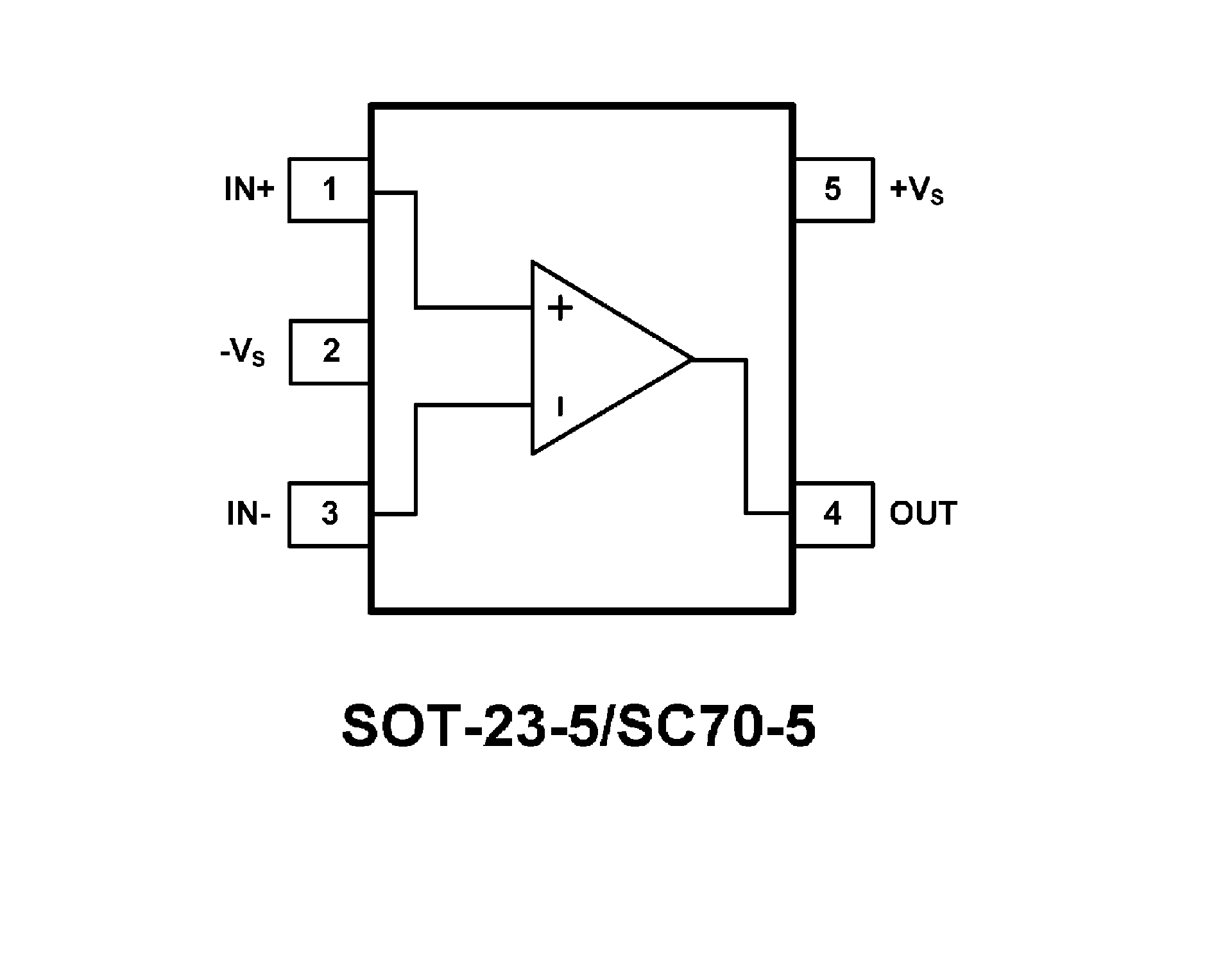

? Available in Green SOT-23-5 and SC70-5 Packages

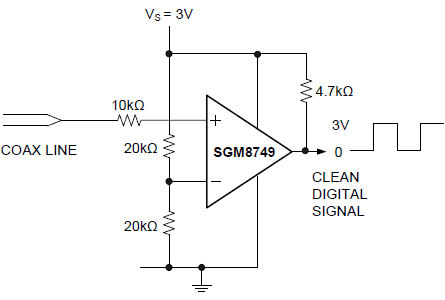

The SGM8749 is a single high-speed comparator optimized for systems powered from a 3V or 5V supply. The device features high-speed response, low-power consumption, and rail-to-rail input range and open drain output. Propagation delay is 150ns, while supply current is only 22μA. The input common mode range of the SGM8749 extends beyond both power supply rails. The output
pulls to within 0.1V of either supply rail without external pull-up circuitry, making the device ideal for interface with both CMOS and TTL logics. All input and output pins can tolerate a continuous short-circuit fault condition to either rail.
The SGM8749 is available in Green SOT-23-5 andSC70-5 packages. It is rated over the -40℃ to +85℃ temperature range.
