SGM8750.pdf
No.10676
? Fast, 150ns Propagation Delay (10mV Overdrive)
The SGM8750 is a dual channels high-speed comparator optimized for systems powered from a 3V or 5V supply. The device features high-speed response, low-power consumption, and rail-to-rail input range and open drain output. Propagation delay is 150ns, while supply current is only 22μA/channel. The input common mode range of the SGM8750 extends beyond both power supply rails. The output pulls to within 0.1V of either supply rail without external pull-up circuitry, making the device ideal for interface with both CMOS and TTL logics. All input and output pins can tolerate a continuous short-circuit fault condition to either rail.

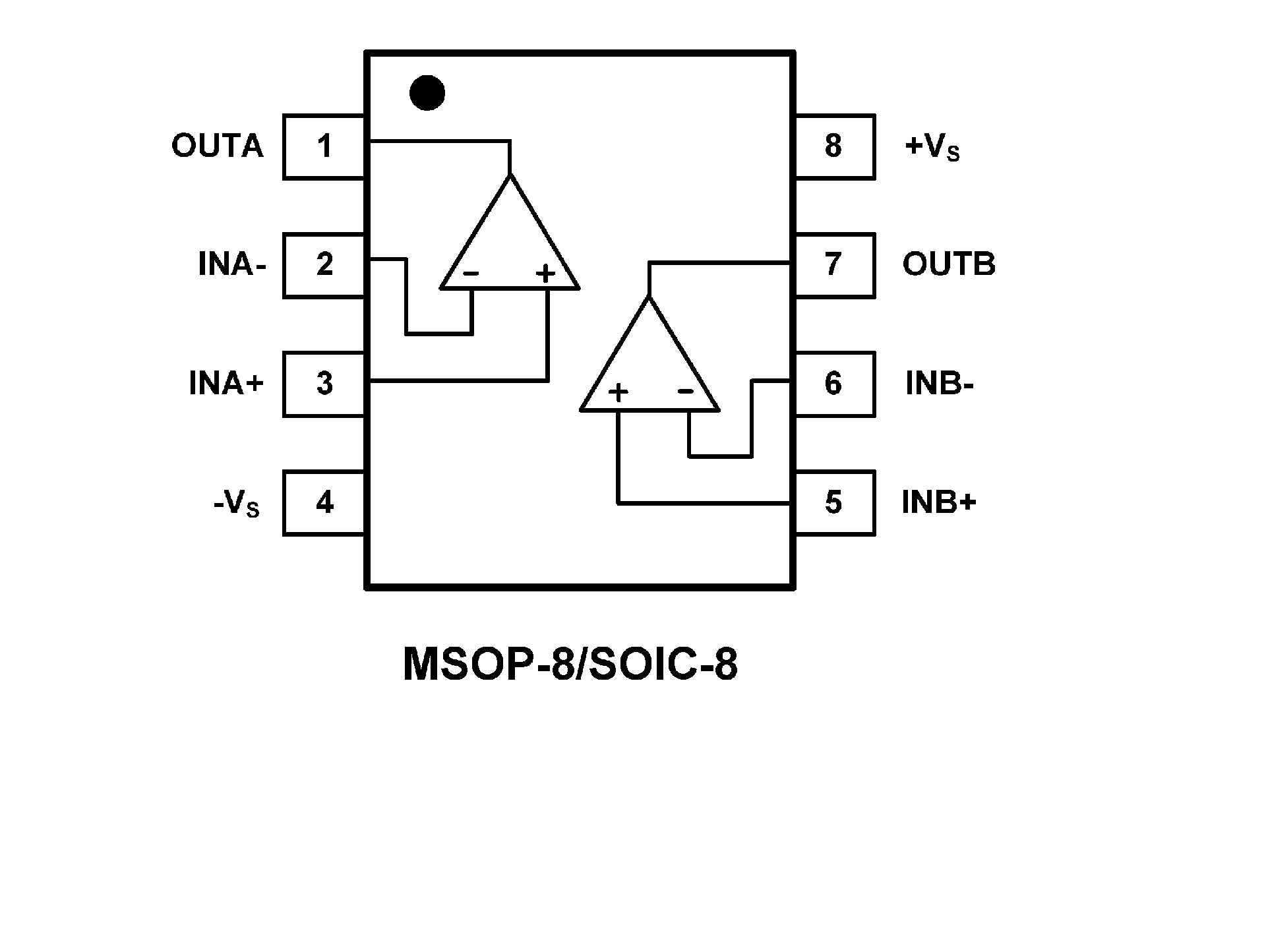

The SGM8750 is available in Green MSOP-8 and SOIC-8 packages. It is rated over the -40℃ to +85℃ temperature range.
