High Precision Operational Amplifier
SGM8294
SGM8294.pdf
SGM8294.pdf
No.10751
FEATURES
? Low Power Consumption: 150μA/Amplifier
? Low Offset Voltage: 1.5mV (MAX)
? Wide Input Common Mode Voltage Range
? Low Input Bias and Offset Currents
? Output Short-Circuit Protection
? Rail-to-Rail Output
? High Input Impedance
? High Slew Rate: 7V/μs
? Small Packaging:
SGM8294 Available in Green TSSOP-14 and SOIC-14
DESCRIPTION
The SGM8291 (single), SGM8292 (dual) and SGM8294 (quad) are high voltage operational amplifiers that are designed to offer a wide input common mode voltage range and output voltage swing. These devices can operate from ±2.25V to ±18V dual power supplies or from +4.5V to +36V single supplies. The devices feature high slew rate, low input bias and offset current, low offset voltage and low offset-voltage temperature coefficient.
The SGM8291/2/4 are specified over the extended -40℃ to +125℃ temperature range. The SGM8294 quad is available in Green SOIC-14 and TSSOP-14 packages.

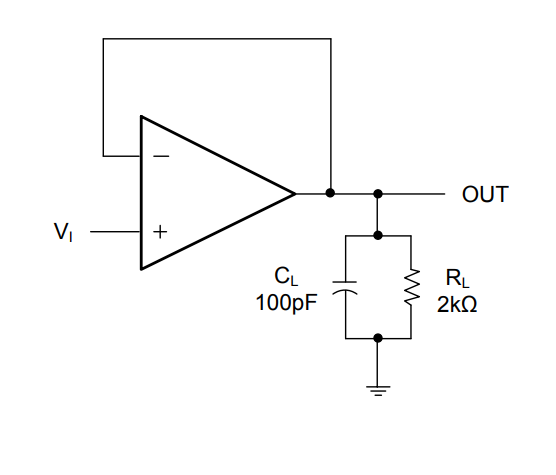

APPLICATION CIRCUIT

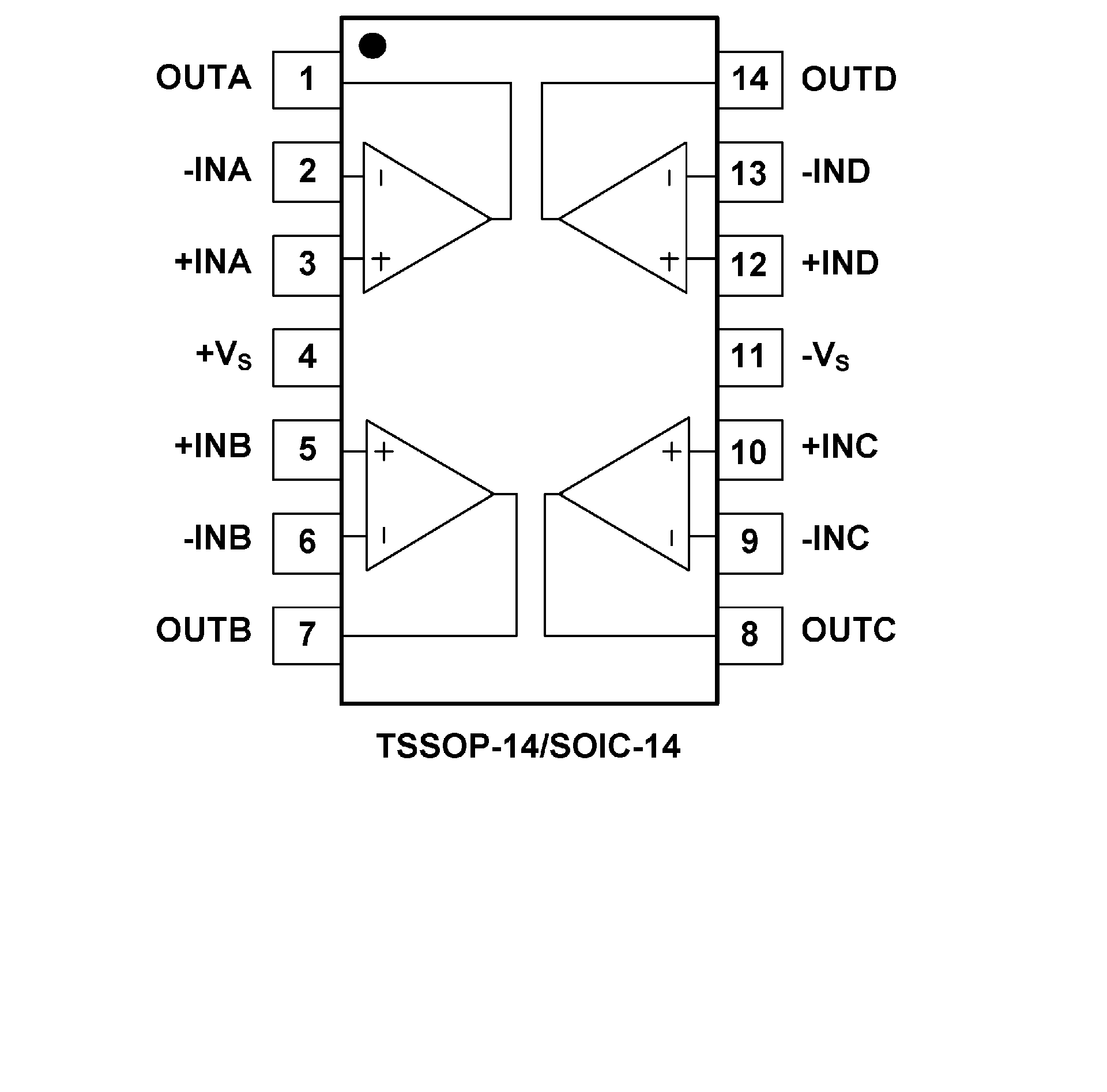

PIN CONFIGUTION
