SGM61430.pdf
No.10757

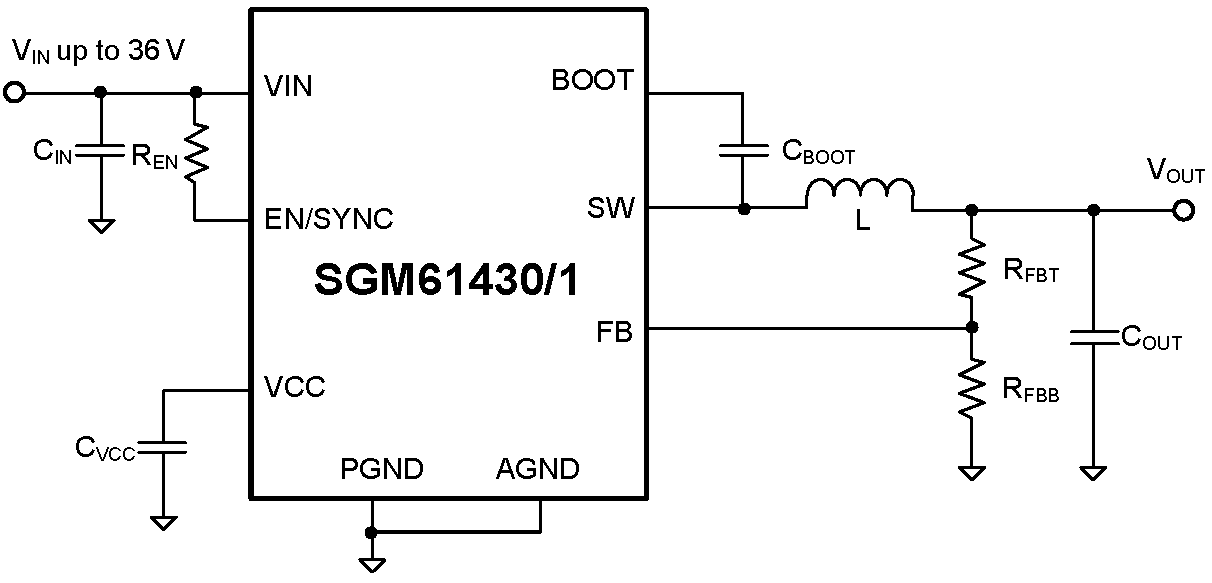

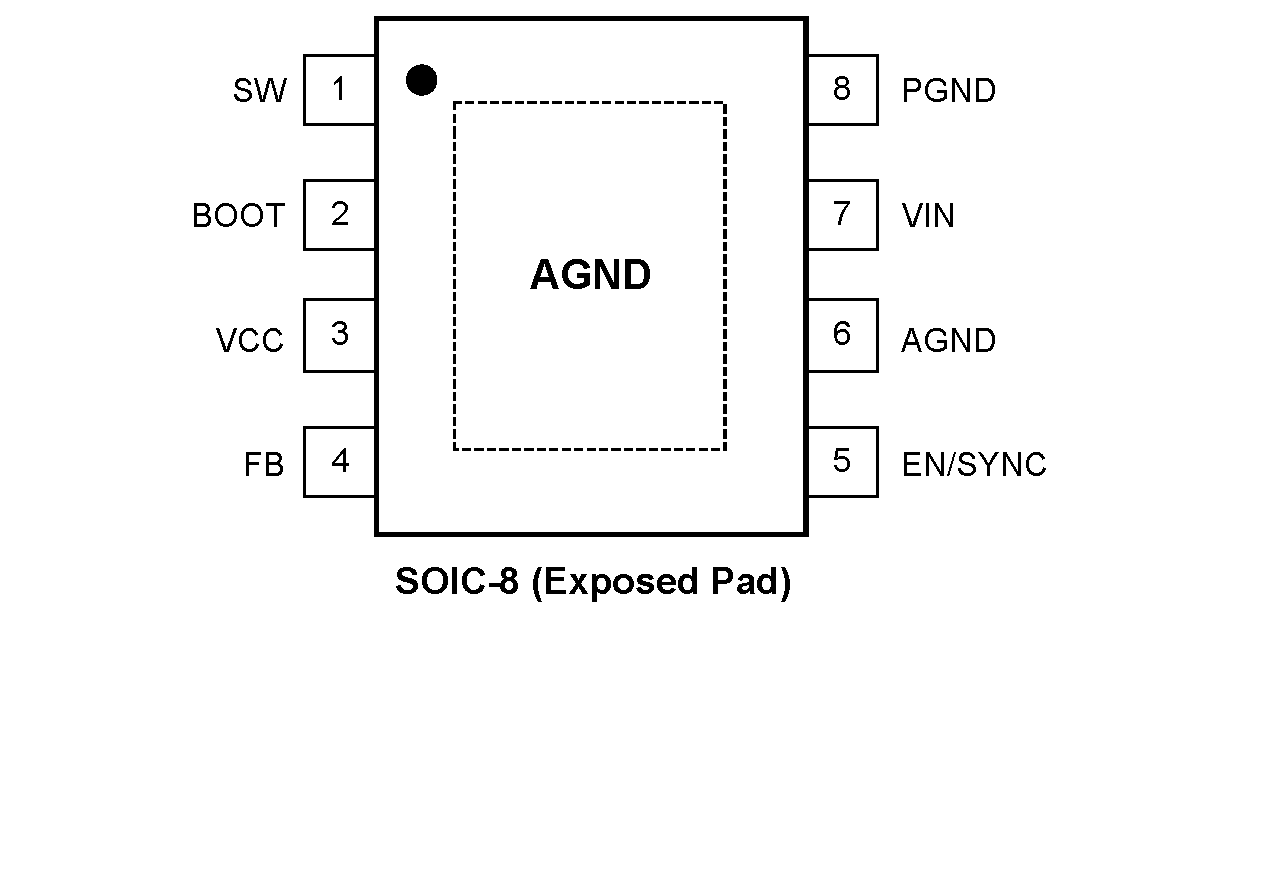

The SGM61430 and SGM61431 are internally compensated, synchronous step-down regulators with a wide 4.5V to 36V input voltage range and 3A output
current capability. These devices can be easily used in various industrial applications powered from unregulated sources. Easy compensation and cycle-by-cycle current limit are obtained by peak current mode control. With 65μA (TYP) quiescent current and ultra-low 0.55μA (TYP) shutdown current, they are well suited for battery powered systems to prolong battery life. Internal compensation allows quick and low component count design. Both SGM61430 and SGM61431 can operate at fixed frequency with moderate or heavy load condition. In light load condition, the SGM61430 enters in the pulse frequency modulation (PFM) mode to improve high efficiency, while the SGM61431 works in the forced pulse width modulation (FPWM) mode to achieve low output ripple and good regulation.
The EN/SYNC employs an enable divider to establish a precision threshold that simplifies UVLO adjustment, device on/off control and power sequencing. Thermal shutdown and output short circuit protection (hiccup mode) are also provided.
