2.5A Adjustable Current Limit
SGM2576 SGM2576.pdf

No.10759

FEATURES

? 100mΩ (TYP) High-side N-Channel MOSFET

? Programmable Current Limit Range: 0.4A to 2.5A
  1500mA ± 190mA@RILIM = 4.53kΩ
? Input Voltage Range: 2.5V to 5.5V
? Quiescent Current: 23μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Soft-Start Function
? Temperature Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Automatic Output Discharge in Shutdown Mode
  (SGM2576 Only)
? 500kΩ Pull-Down Resistor at EN Pin
? Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,
  Test Program 1 with CB Report
? Available in Green SOT-23-5 Package
DESCRIPTION

The SGM2576 and SGM2576B are integrated typically 100mΩ power switch for self-powered and bus-powered universal series bus (USB) applications. The SGM2576 and SGM2576B integrate programmable current limit to protect the upstream power supply from damage during over-current or short-circuit conditions. They have thermal shutdown that protects the device and load. Thermal shutdown shuts off the output MOSFET if the die temperature exceeds +150℃, and the output MOSFET remains off until the die temperature drops to +130℃.
These devices employ soft-start circuit that minimizes inrush current in applications where highly capacitive loads are employed. SGM2576 and SGM2576B are available in a Green SOT-23-5 package. They are rated over the -40℃ to +85℃ temperature range.

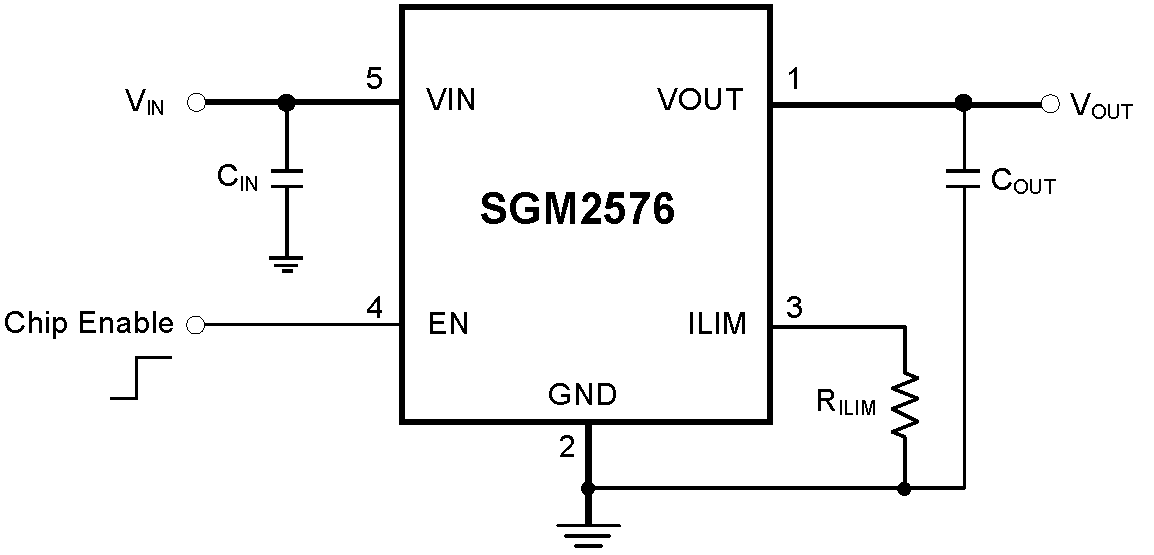

APPLICATION CIRCUIT

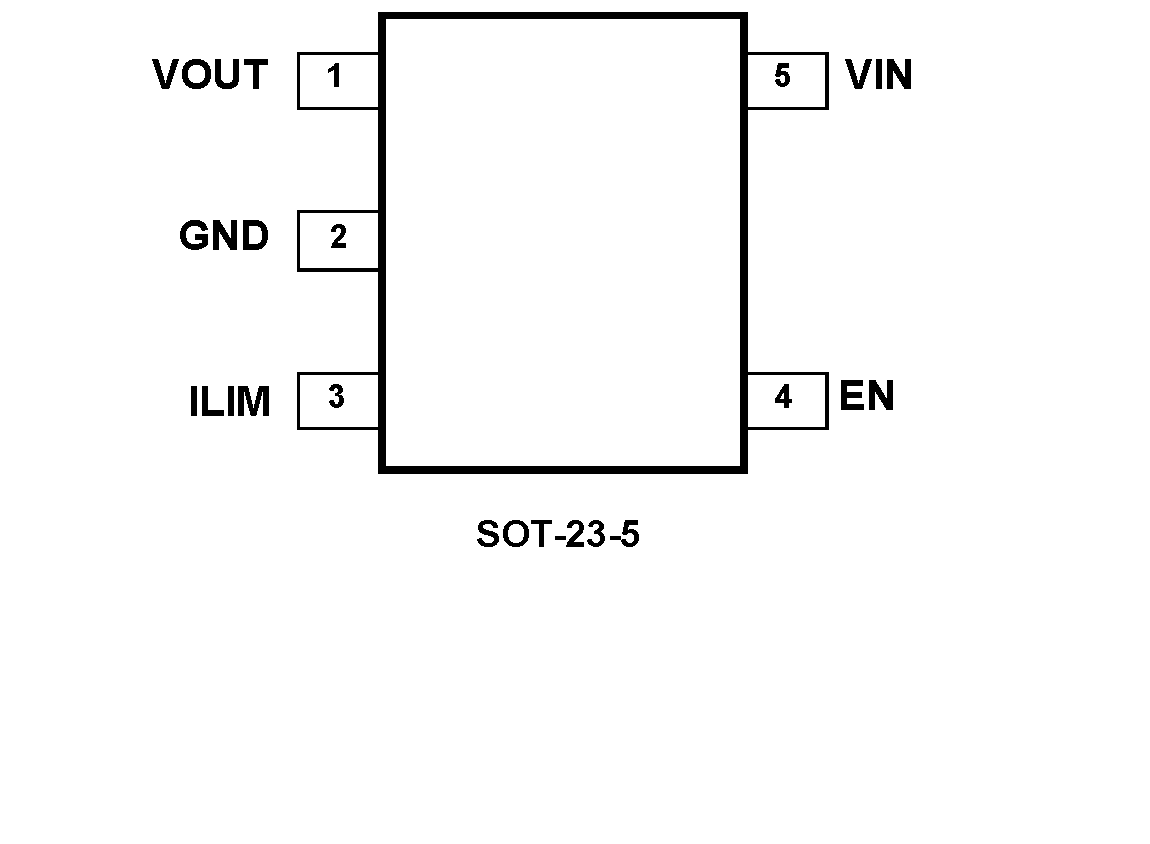

PIN CONFIGUTION
