SGM8922.pdf
No.10812
? Rail-to-Rail Output
? Low Noise: 6nV/ Hz
? Low Distortion
? High Output Voltage Swing: 4.73V
(with 100mA Output Current)
? Low Output Voltage Swing: 0.24V
(with 100mA Output Current)
? Supply Voltage Range: 3V to 5.5V
? Low Input Offset Voltage: 0.9mV (MAX, SGM8922A)
? Gain-Bandwidth Product: 12.7MHz
? Slew Rate: 6.8V/μs
? Low Supply Current 3mA/Amplifier (TYP)
? Small Packaging:

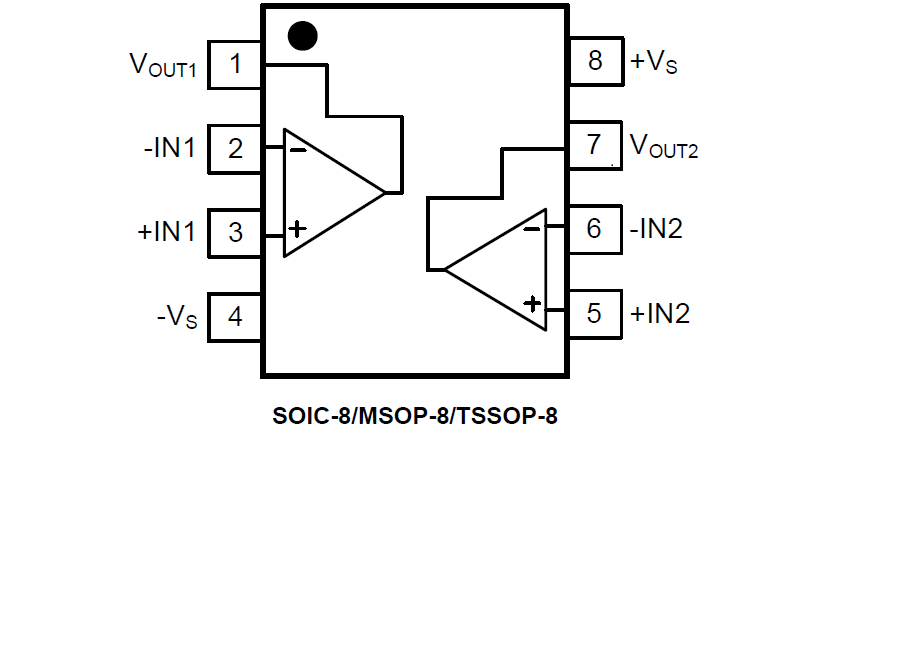

Available in Green MSOP-8, TSSOP-8 and SOIC-8
Packages
The SGM8922 is a dual, rail-to-rail output operational amplifier that is optimized and fully specified for 5V operation. High output current allows low load impedances to be driven. The SGM8922 has a wide input common mode voltage range and output voltage swing, running at single supply voltage from 3V to 5.5V.
The SGM8922 provides excellent overall performance. It exhibits low noise, distortion, low offset and high output current capability, making this device an excellent choice for high quality, low voltage or battery operated audio systems.
The SGM8922 is offered in Green MSOP-8, TSSOP-8 and SOIC-8 packages and ESD (HBM) reaches 8kV. It is specified over the extended -40℃ to +125℃ temperature range.
